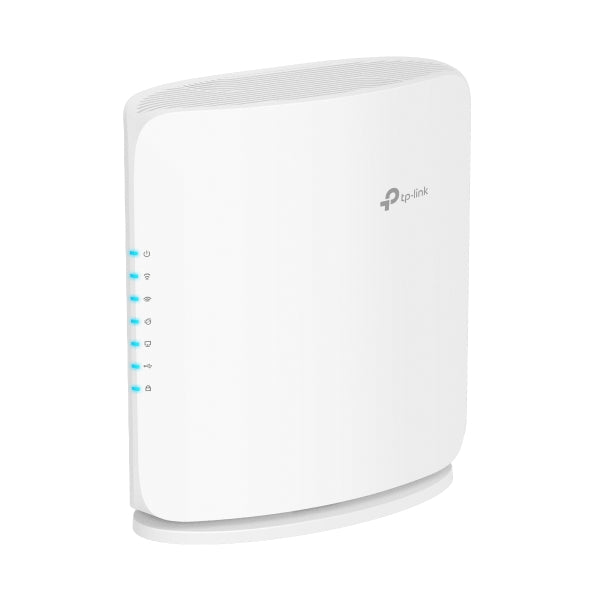

TP Link BE7200 Dual Band WIFI 7 Router

TP Link BE7200 Dual Band WIFI 7 Router – High‑end Wi‑Fi 7 (802.11be) router with combined BE7200 speeds (5765 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz), Multi‑Link Operation (MLO), 4K‑QAM, OFDMA, MU‑MIMO, and a robust port lineup: 1× 10 Gbps WAN/LAN, 1× 2.5 Gbps WAN/LAN, 3× Gigabit LAN, plus USB 3.0. Includes TP‑Link HomeShield security, advanced VPN server/client options, and works with Alexa/Google Assistant.

Product Overview
The TP‑Link Archer BE450 (BE7200) is a dual‑band Wi‑Fi 7 router aimed at large homes and power users who need multi‑gig internet, heavy local traffic, and low‑latency gaming/streaming. Its BE7200 rating comes from very high PHY rates on two bands: up to 5765 Mbps (5 GHz) and 1376 Mbps (2.4 GHz) using 802.11be features. Key Wi‑Fi 7 technologies include Multi‑Link Operation (MLO) for aggregating links, 4K‑QAM for higher throughput, Multi‑RUs, and improved efficiency via OFDMA and MU‑MIMO.

Key Features
- Wi‑Fi 7 (802.11be) Dual‑Band – Up to 5765 Mbps (5 GHz) + 1376 Mbps (2.4 GHz); BE7200 class.
- Multi‑Link Operation (MLO) – Aggregate links for higher throughput and lower latency (client‑dependent).
- 4K‑QAM, OFDMA, MU‑MIMO – Higher efficiency and capacity for many simultaneous devices.
- Beamforming + Internal Antenna Array – Focuses signal towards clients to improve range and stability.
- Multi‑Gig Wired Backhaul – 1× 10 Gbps WAN/LAN + 1× 2.5 Gbps WAN/LAN + 3× Gigabit LAN.
- USB 3.0 Sharing – FTP/Samba/media server functions for attached storage.
- HomeShield Security – Real‑time IoT protection, malicious site blocker, IPS, DDoS prevention, network scanner.



Specifications
- Model: Archer BE450
- Product Description: TP Link BE7200 Dual Band Wifi 7 Router
- Wireless Standard: Wi‑Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax
- Bands: Dual‑band (2.4 GHz + 5 GHz)
- Wireless Speeds:
    5 GHz: up to 5765 Mbps (802.11be)
    2.4 GHz: up to 1376 Mbps (802.11be)
- Antennas: Internal multiple antennas with beamforming
- Capacity Features: MU‑MIMO, OFDMA, Multi‑RUs, Airtime Fairness, DFS support
- Wi‑Fi 7 Features: MLO, 4K‑QAM, Multi‑RUs
- Ethernet Ports:
    1× 10 Gbps WAN/LAN
    1× 2.5 Gbps WAN/LAN
    3× 1 Gbps LAN
- USB: 1× USB 3.0 (NTFS, exFAT, HFS+, FAT32; FTP/Samba/media server)
- Security:
    SPI Firewall, Access Control, IP/MAC Binding, ALG
    HomeShield: real‑time IoT protection, malicious site blocker, IPS, DDoS prevention, home network scanner
    WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2‑Enterprise (802.1x)
- VPN:
    Server: OpenVPN, PPTP, L2TP, WireGuard
    Client: OpenVPN, PPTP, L2TP, WireGuard
- Guest Networks: 1× 2.4 GHz guest, 1× 5 GHz guest
- Modes: Router Mode, Access Point Mode; IoT network modes
- Management: Tether app, web UI; Auto firmware upgrade, TP‑Link ID, DDNS
- QoS: QoS by device
- NAT/IPTV/DHCP: Port forwarding/triggering, DMZ, UPnP; IGMP proxy/snooping, VLAN tagging; DHCP reservation, client list
- Smart Home: Works with Alexa and Google Assistant
- Mesh: EasyMesh compatible
- Power: 12 V ⎓ 2.5 A
- Environment: 0–40 °C operating; 10–90% RH non‑condensing
