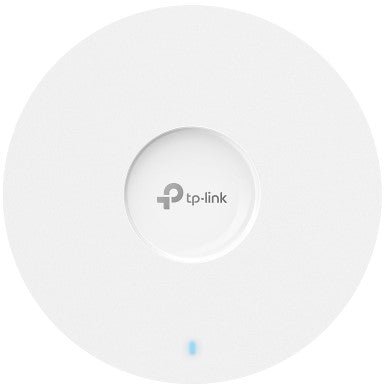

TP LInk AX1800 Ceiling Mount WiFi 6 Access Point

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point - Ultra-Fast WiFi 6 Speeds Up to 574Mbps on 2.4GHz and 1201Mbps on 5GHz, Internal Omni Antenna, Gigabit Ethernet (RJ45) Port, Centralized Cloud Management, Seamless Roaming, Omada Mesh, PoE+ Powered, Ultra-Slim Design, Secure Guest Network, Ceiling or Wall Mounting (kits Included), Retail Box, 6 Months Warranty.

Product Overview

TP-Link Omada EAP610 AX1800 Ceiling Mount Wi-Fi 6 Access Point Dual-band AX1800 performance (1201 Mbps on 5GHz + 574 Mbps on 2.4GHz) with IEEE 802.11ax/ac standards, internal omni antennas (2×4dBi 2.4GHz, 2×5dBi 5GHz), and support for 250+ concurrent clients via OFDMA, MU-MIMO, and beamforming. Versatile powering (802.3at PoE, 48V passive PoE, or 12V/1.5A DC adapter included), compact 6.3 × 6.3 × 1.3 in design with ceiling/wall/junction box mounting kits, plus advanced features like 16 SSIDs, WPA3 security, Omada Mesh, and seamless roaming. Enterprise-grade management via Omada SDN controllers (cloud/app/hardware/software), QoS, captive portal, and zero-touch provisioning—operates reliably in 0–40°C environments for offices, schools, or hospitality.

Specifications

•Product Code: EAP610
•Description: TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
•Interface: 1 x Gigabit Ethernet (RJ-45) Port
•Button: Reset
Power Supply
V2 and above:
•802.3at PoE
•48 V Passive PoE
•12 V / 1.5 A DC (Power Adapter included)
Max. Power Consumption
V2 and above:
•EU: 13.7 W (For PoE); 12.3 W (for DC)
•US: 14.2 W (For PoE); 12.8 W (for DC)
•Dimensions ( W x D x H ): V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
•Antenna: Internal Omni Antenna
•2.4 GHz: 2× 4 dBi
•5 GHz: 2× 5 dBi
Mounting
•Ceiling /Wall Mounting (Kits included)
•Junction Box Mounting

•Concurrent Client: 250+
•Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
•Frequency: 2.4 GHz and 5 GHz
Signal Rate
•5 GHz: Up to 1201 Mbps
•2.4 GHz: Up to 574 Mbps

Wireless Functions
•1024-QAM
•4× Longer OFDM Symbol
•OFDMA
•Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
•Enable/Disable Wireless Radio
•Automatic Channel Assignment
•Transmit Power Control (Adjust Transmit Power on dBm)
•QoS(WMM)
•MU-MIMO
•Seamless Roaming §
•Omada Mesh§
•Band Steering
•Load Balance
•Airtime Fairness
•Beamforming
•Rate Limit
•Reboot Schedule
•Wireless Schedule
•Wireless Statistics based on SSID/AP/Client

Wireless Security
•Captive Portal Authentication§
•Access Control
•Wireless Mac Address Filtering
•Wireless Isolation Between Clients
•SSID to VLAN Mapping
•Rogue AP Detection
•802.1X Support
•WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
•CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
•FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

•Omada App: Yes

Centralized Management
•Omada Cloud-Based Controller
•Omada Hardware Controller OC300
•Omada Hardware Controller OC200
•Omada Software Controller

Cloud Access: Yes, through
•OC300
•OC200
•Omada Software Controller
•Omada Cloud-Based Controller

•Email Alerts: Yes
•LED ON/OFF Control: Yes
•Management MAC Access Control: Yes
•SNMP: v1, v2c, v3
•System Logging Local/Remote Syslog: Local/Remote Syslog
•SSH: Yes
•Web-based Management: HTTP/HTTPS
•L3 Management: Yes
•Multi-site Management: Yes
•Management VLAN: Yes
•Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

•Operating Temperature: 0–40 ℃ (32–104 ℉)
